Tropicana City Mall, Petaling Jaya, Malaysia

The lighting package for this facade lighting includes the supply of color changing LED lighting for Glass portal entrance and the sky roof inside the mall. The concept and design were done by a lighting consultant through technical discussion with our in-house specialist. The concept is to have a glowing effect for the glass portal at the main facade of the mall and a color changing cove LED lighting around the sky roof.

We used a total of 221 quantities, of LED luminaries for the glass portal. The luminaries are mounted at the glass support structure spaced at 2.4 metres centre to centre and located one metre from the backwall.

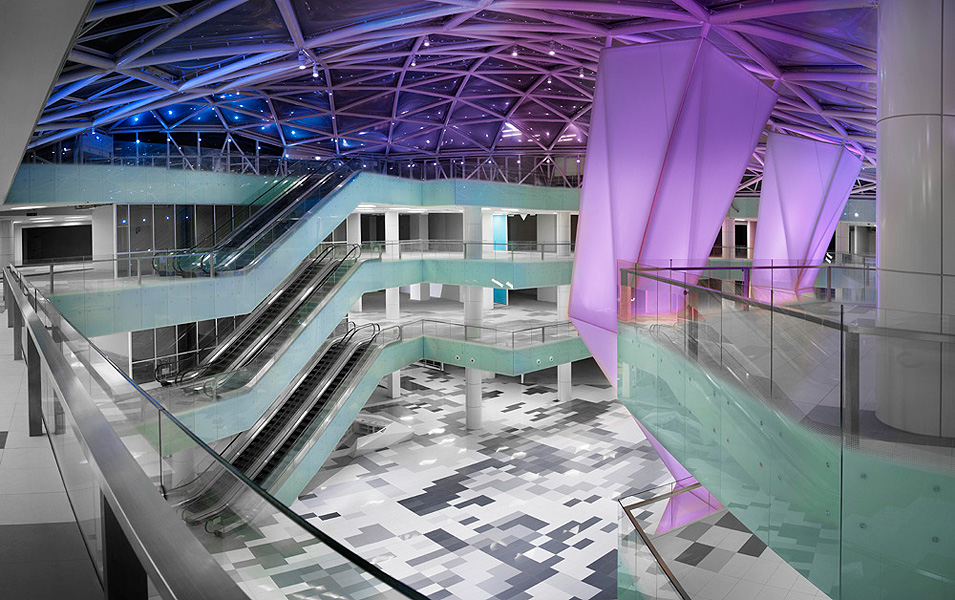

Photo Credit: LSI Systems


The reflected light from the backwall will create an even glow over the whole surface of the glazing. The LED light sources provide the colour changing and ensure a low-energy, low maintenance installation. The backwall was painted matt- white and glass shall be slightly frosted to achieve maximum reflection and even glow. The luminaries have a built-in Power Supply and Data Management System. Accordingly, no remote power supplies are required.


The reflected light from the backwall will create an even glow over the whole surface of the glazing. The LED light sources provide the colour changing and ensure a low-energy, low maintenance installation. The backwall was painted matt- white and glass shall be slightly frosted to achieve maximum reflection and even glow. The luminaries have a built-in Power Supply and Data Management System. Accordingly, no remote power supplies are required.

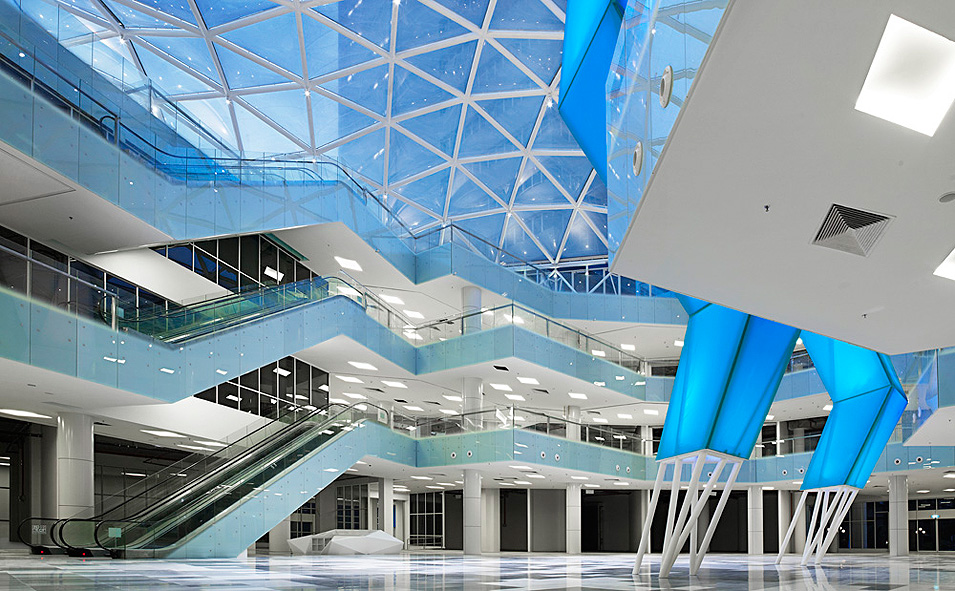

Photo Credit: LSI Systems
